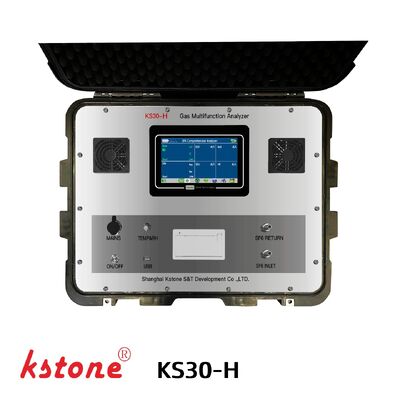

Portable Switchgear Gas Analyzer with NDIR Infrared Spectroscopy for Trace SF6 Detection

  • Portable Switchgear Gas Analyzer with NDIR Infrared Spectroscopy for Trace SF6 Detection
Luogo di origine Shangai
Marca KSTONE
Certificazione ISO9000
Numero di modello KS30-H
Quantità di ordine minimo 1
Imballaggi particolari Contenitore di legno di cartone
Tempi di consegna 15 giorni lavorativi
Termini di pagamento T/T
Capacità di alimentazione 1000 unità all'anno
Dettagli
Principio di misurazione SF6 Spettroscopia infrarossa NDIR Intervallo di misurazione SF6 0 ‰ 100 ppm
Precisione SF6 ± 2% F.S. Risoluzione SF6 0,1 ppm
Evidenziare

Portable SF6 gas analyzer

,

NDIR infrared spectroscopy gas tester

,

Trace SF6 detection switchgear
Lasciate un messaggio
Descrizione di prodotto
Environmentally Friendly Switchgear Gas Analyzer
Product Overview

The KS30-H Environmentally Friendly Switchgear Gas Analyzer is a portable multi-gas testing instrument designed for modern dry air insulated switchgear, nitrogen insulated switchgear, and environmentally friendly medium-voltage and high-voltage equipment.

The analyzer is specifically developed to detect trace SF6 contamination, measure O₂ and N₂ concentration, and identify whether the switchgear is dry-air insulated or nitrogen-insulated based on gas composition analysis. An optional dew point and moisture measurement module enables comprehensive gas quality assessment for equipment commissioning, maintenance, acceptance testing, and environmental compliance verification.

As utilities and manufacturers transition from traditional SF6-insulated equipment to alternative insulating gases, the KS30-H provides a reliable solution for gas verification, contamination monitoring, and insulation condition assessment.

Key Features
Trace SF6 Detection for Environmental Compliance

Utilizing advanced NDIR infrared spectroscopy technology, the analyzer accurately detects residual or trace SF6 concentrations in environmentally friendly switchgear systems.

  • Detection range: 0-100 ppm
  • Resolution: 0.1 ppm
  • Fast response within 30 seconds
  • Suitable for SF6 contamination verification
Gas Type Identification

The instrument simultaneously measures nitrogen (N₂), oxygen (O₂), and trace SF6. By analyzing gas composition, the KS30-H can quickly determine whether the equipment uses dry air insulation, nitrogen insulation, mixed gas systems, or potential SF6 contamination.

Optional Dew Point & Moisture Testing

An optional high-precision moisture module enables dew point measurement, micro-water analysis, insulation quality assessment, and moisture contamination monitoring.

Portable Field Design
  • Lightweight 3.5 kg construction
  • Rechargeable lithium battery
  • AC/DC dual power supply
  • Suitable for substation and field service applications
Fast On-Site Testing

The analyzer delivers rapid measurement results, helping maintenance personnel reduce testing time and improve operational efficiency during commissioning and routine inspections.

Applications
Environmentally Friendly Switchgear Testing
  • Dry air insulated switchgear
  • Nitrogen insulated switchgear
  • Eco-friendly gas insulated switchgear (GIS)
  • Medium-voltage switchgear
  • High-voltage switchgear
Utility and Substation Maintenance
  • Incoming equipment inspection
  • Commissioning verification
  • Preventive maintenance
  • Gas quality assessment
  • Environmental compliance audits
Manufacturing Quality Control
  • Factory acceptance testing (FAT)
  • Production quality inspection
  • Gas filling verification
  • Product certification testing
Technical Specifications
Parameter Specification
SF6 Measurement Principle NDIR Infrared Spectroscopy
SF6 Measurement Range 0-100 ppm
SF6 Accuracy ±2% F.S
SF6 Resolution 0.1 ppm
SF6 Response Time ≤30 s
N₂ Measurement Range 0-100%
N₂ Accuracy ±0.5%
N₂ Resolution 0.01%
N₂ Response Time ≤30 s
O₂ Measurement Range 0-30%
O₂ Accuracy ±0.5%
O₂ Resolution 0.01%
O₂ Response Time ≤30 s
Dew Point Range (Optional) -80°C to +20°C
Dew Point Accuracy ±0.5°C
Dew Point Resolution 0.1°C
Sample Gas Flow Rate 0.2-0.5 L/min
Sample Gas Pressure ≤10 bar
Operating Temperature -20°C to +50°C
Operating Humidity 5-95% RH
Power Supply Rechargeable lithium battery or AC 100-240 V, 50/60 Hz (AC/DC dual power operation)
Dimensions 414 × 333 × 177 mm
Weight 3.5 kg
Why Choose KS30-H?

As the global power industry increasingly adopts SF6-free switchgear technologies, utilities and manufacturers require accurate instruments to verify insulation gas composition and ensure equipment compliance.

The KS30-H provides:

  • Trace SF6 detection down to 0.1 ppm
  • Simultaneous O₂ and N₂ analysis
  • Environmental switchgear gas identification
  • Optional dew point and moisture testing
  • Portable field-ready design
  • Fast and reliable measurement results
  • Suitable for dry air and nitrogen insulated equipment
Frequently Asked Questions (FAQ)
What is the purpose of the KS30-H analyzer?

The KS30-H is designed to verify gas composition in environmentally friendly switchgear and detect trace SF6 contamination in dry air and nitrogen insulated equipment.

Can the analyzer distinguish between dry air and nitrogen insulated switchgear?

Yes. By measuring O₂ and N₂ concentrations, the instrument can identify the insulation medium and determine whether the equipment is dry-air insulated or nitrogen-insulated.

Does the instrument measure moisture?

Yes. An optional dew point module allows accurate moisture and micro-water analysis.

What is the minimum SF6 detection sensitivity?

The analyzer offers a resolution of 0.1 ppm for trace SF6 measurement.

Is the instrument suitable for GIS applications?

The KS30-H is suitable for environmentally friendly GIS, dry-air GIS, nitrogen-insulated GIS, and other SF6 alternative gas systems.

Why Work With KSTONE
  • Professional SF6 gas equipment manufacturer
  • Extensive GIS industry application experience
  • OEM & customized solution support
  • Fast technical response
  • Stable industrial-grade equipment
  • Global B2B export experience
Request a Quote for Comprehensive Test Instrument

Send us your technical requirements and application details. Our engineering team will provide a suitable Gas Analyzer within 24 hours.
